Curved PVB Glass

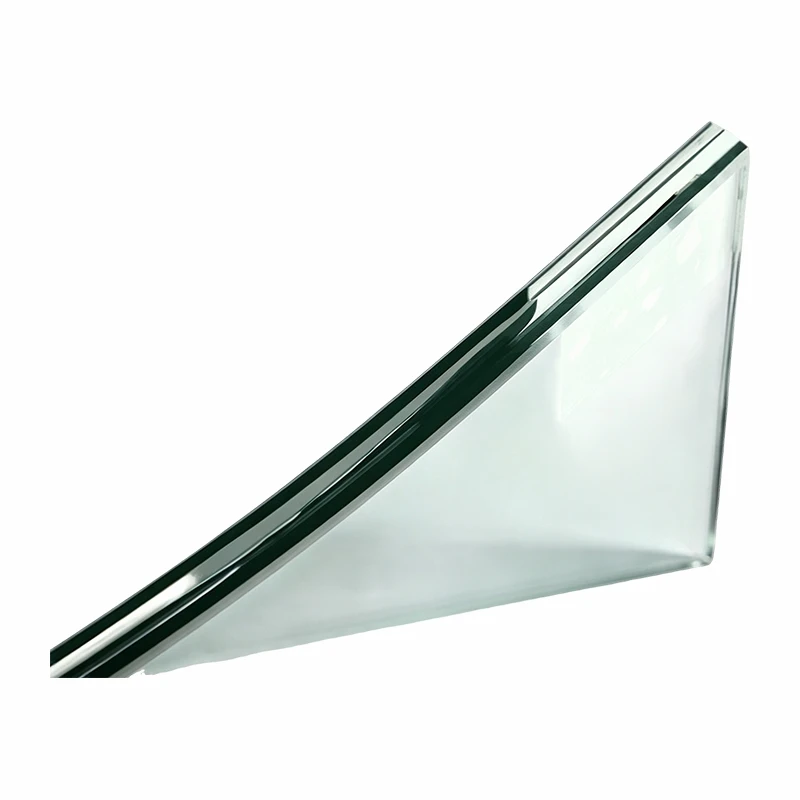

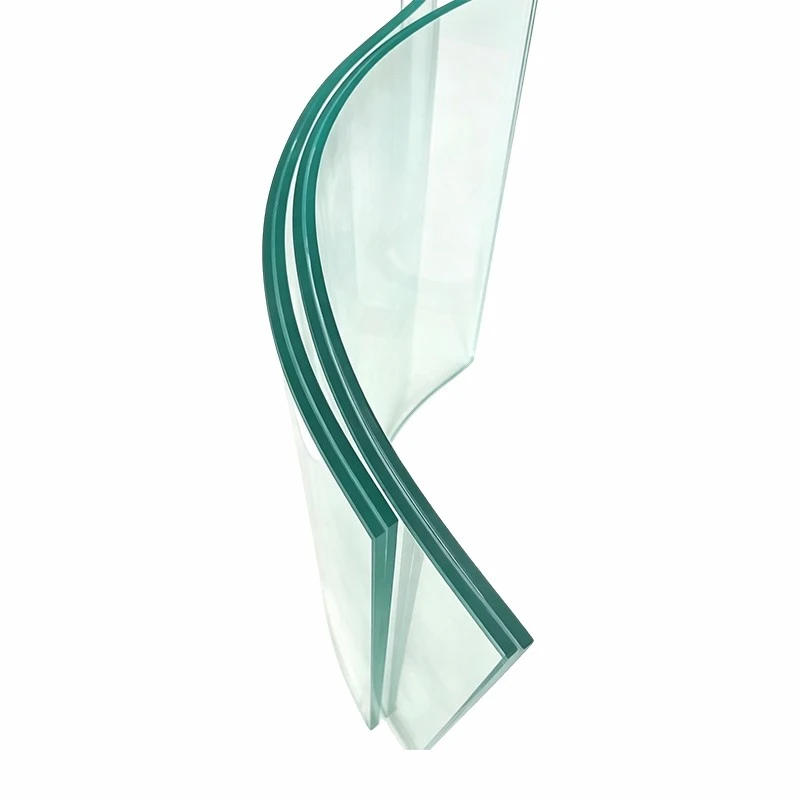

Curved PVB glass combines the beauty of curved shapes with laminated glass safety. Two or more curved glass layers are bonded with PVB film under high temperature and pressure. This creates a smooth curved surface that is also safety glass. When broken, fragments stick to the PVB film. They do not fall or cause injury. Even at height, no glass fragments drop. Maximum bending size is 2440mm × 3660mm. Thickness combinations are flexible. Minimum bending radius is 1000mm for 5mm thickness. Applications include curved curtain walls, curved skylights, curved glass railings, spiral staircase curved glass, specialty commercial facades, and landmark curved safety glass areas. Curved PVB glass solves the challenge of achieving both curved design and safety.

Curved laminated glass requires two core processing steps. First, the glass is curved and tempered. Then, it goes through lamination. Our R&D team has mastered the coordination between these steps. We hold over 10 technical patents. Each curved PVB glass sheet undergoes 100% inspection before shipping. Our quality team checks curvature accuracy, bond strength, bubbles, and impurities. Third-party inspections are welcome. We have supplied curved glass for multiple overseas projects. Our experience in large-volume curved laminated glass production is well established.

We support OEM and ODM customization. We follow your drawings for curvature, size, and thickness. Curved PVB glass production takes 15 to 20 working days. Export packaging uses custom wooden crates. Special support brackets secure curved glass pieces. EVA foam separates each sheet. We offer EXW, FOB, and DDP trade terms. All curved PVB glass comes with a 2-year warranty. Our after-sales team provides 24-hour support. Choose our curved PVB glass for curved architecture that combines aesthetics with safety.
